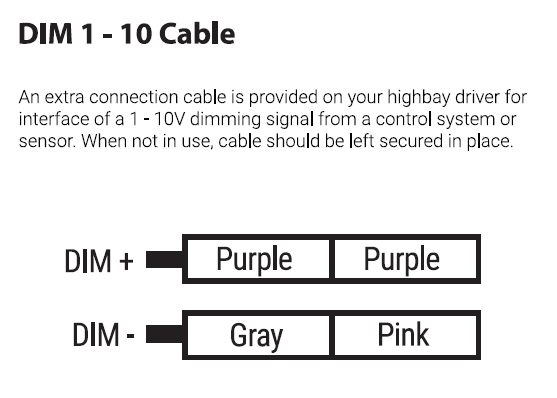

Some of the Atom and Ektor Highbays are 1-10V Dimmable. These highbays will have a second cable coming out from the driver - this cable will be two-core with the ends terminated, and should be labelled at 1-10V Dimming. Config is as per below.
This should work with ANY 1-10V Dimmer.
Q: What dimmer do we recommend? A. We do not recommend any particular brand of 1-10V Dimmers.
Q: How do I connect the highbay to the dimmer A. Please refer to the instructions provided with the dimmer.
Q: How many highbays can I attach to a single dimmer? A. This will depend upon the dimmer. For example the SAL 1-10V Dimmer states a maximum of 30 devices.
